Introduction
The RmzTabM package provides the API and core functionality to read and write files in mzTab-M format. The functions can be re-used and integrated by other R packages to support import and export of their respective metabolomics/lipidomics result objects in this format.

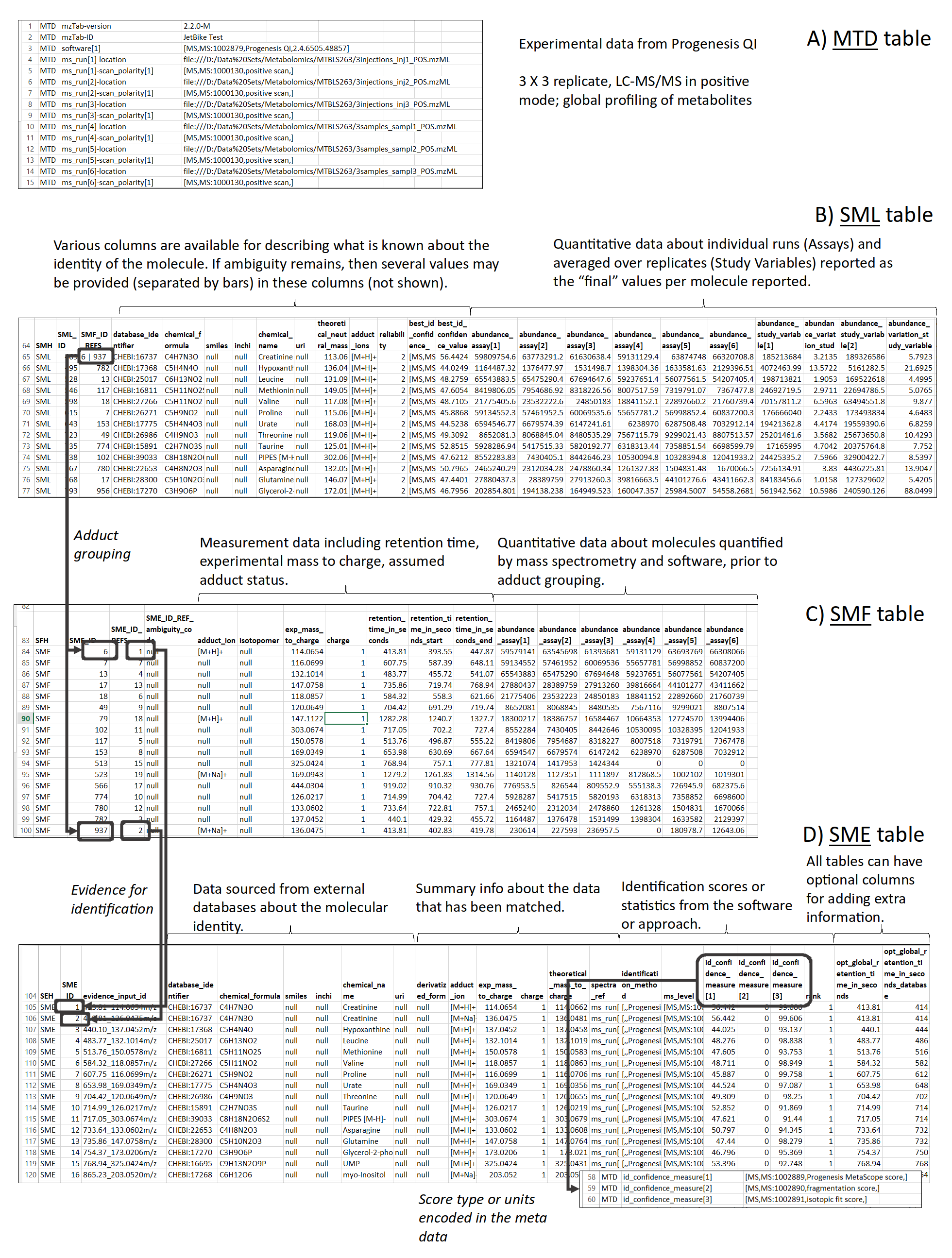

For a general overview of the mzTab-M format see this figure.
Installation
General information on the mzTab-M format
The mzTab-M format consists of four cross-referenced data tables: metadata (MTD), Small Molecule (SML), Small Molecule Feature (SMF) and the Small Molecule Evidence (SME). The MTD section is supposed to contain all experiment and measurement relevant information. The SML section contains the final results of an analysis that should be reported, i.e., the (annotated) molecules and their respective abundances. The SMF section contains information on the measured (LC-MS) features and their abundance values. The SME section contains information on the annotation process (and reliability) of the molecules reported in the SML section. The SML is supposed to be a subset of the SMF table. The structure and relationship between rows in these different tables is defined by the mzTab-M standard and follows strict rules. The functions from the RmzTabM package assist in creating and formatting these tables.
R mzTab-M API
The RmzTabM package provides low level, core functions and higher-level functions to work with files in mzTab-M format. The high-level functions are more user-oriented, simplifying the import and export of data and information from and to files in mzTab-M format. The low-level, core functions are developer-oriented, providing helper functions that can be re-used in other R packages to read and write from and to mzTab-M files.
For a description of the mzTab-M format and the set of mandatory and optional fields refer to the official format definition.
High-level, user faced functions
TODO: implement these functions. These functions should simplify import/export taking more complex or multiple data parts (data.frames, matrix etc) as input and write the formatted data directly to a mzTab-M file, or should read a mzTab-M file returning it’s content as e.g. a list of elements.
Low-level functions
The low-level functions listed in this section provide the base functionality to convert or format information and data for/from the mzTab-M format. These functions are designed to be re-used by other R packages and take and return only basic, plain R data types.
Formatting and exporting
All formatting and export functions require that all their parameters, if specified, must be fully named, i.e., no positional matching of a function’s arguments is supported.
Metadata
The mzTab-M format defines various fields and parameters to describe the data and information of an experiment. The RmzTabM package provides a variety of utility functions that help defining and formatting this information.
See also the specification of the MTD section for more information and optional and mandatory metadata fields.
The general categories of the metadadata in the mzTab-M MTD section are core information, sample information, MS run information, assay information and study variable information. For each of these categories a separate R function is available to create and format the respective fields. As an example, we define below a data.frame with sample information. In our example we assume 3 samples (e.g. cell lines) each measured at two different time points. An additional column genotype specifies the genotype of the individual samples and a column operator the initials of the researcher extracting the samples.
#' Define a simple data.frame of the measured samples of an experiment
exp <- data.frame(
sample_name = c("S1_T1", "S1_T2", "S2_T1", "S2_T2", "S3_T1", "S3_T2"),
sample_id = c("S1", "S1", "S2", "S2", "S3", "S3"),
timepoint = c("0h", "6h", "0h", "6h", "0h", "6h"),
genotype = c("WT", "WT", "KO", "KO", "KO", "KO"),
operator = c("BB", "BB", "BB", "BB", "FB", "FB"),
file_name = c("s1-t1.mzML", "s1-t2.mzML", "s2-t1.mzML", "s2-t2.mzML",
"s3-t1.mzML", "s3-t2.mzML")
)
exp sample_name sample_id timepoint genotype operator file_name
1 S1_T1 S1 0h WT BB s1-t1.mzML
2 S1_T2 S1 6h WT BB s1-t2.mzML
3 S2_T1 S2 0h KO BB s2-t1.mzML
4 S2_T2 S2 6h KO BB s2-t2.mzML
5 S3_T1 S3 0h KO FB s3-t1.mzML
6 S3_T2 S3 6h KO FB s3-t2.mzMLWe will next compile the MTD information for the experiment using the individual helper functions, starting with the Core information: this comprises general information about the experiment. A minimal set of fields can be compiled using the mtd_skeleton() function. We have to provide an ID for the experiment and in addition we specify the software used to process the data:
mtd <- mtd_skeleton(
id = "EXP_001",
software = "[MS, MS:1001582, xcms, 4.1.0]"
)
mtd [,1]
[1,] "mzTab-version"
[2,] "mzTab-ID"
[3,] "software[1]"
[4,] "quantification_method"
[5,] "cv[1]-label"
[6,] "cv[1]-full_name"
[7,] "cv[1]-version"
[8,] "cv[1]-uri"
[9,] "cv[2]-label"
[10,] "cv[2]-full_name"
[11,] "cv[2]-version"
[12,] "cv[2]-uri"
[13,] "database[1]"
[14,] "database[1]-prefix"
[15,] "database[1]-version"
[16,] "database[1]-uri"
[17,] "small_molecule-quantification_unit"
[18,] "small_molecule_feature-quantification_unit"
[19,] "small_molecule-identification_reliability"
[,2]
[1,] "2.0.0-M"
[2,] "id"
[3,] "[MS, MS:1001582, xcms, 4.1.0]"
[4,] "[MS, MS:1001834, LC-MS label-free quantitation analysis, ]"
[5,] "MS"
[6,] "PSI-MS controlled vocabulary"
[7,] "4.1.138"
[8,] "https://raw.githubusercontent.com/HUPO-PSI/psi-ms-CV/master/psi-ms.obo"
[9,] "PRIDE"
[10,] "PRIDE PRoteomics IDEntifications (PRIDE) database controlled vocabulary"
[11,] "16:10:2023 11:38"
[12,] "https://www.ebi.ac.uk/ols/ontologies/pride"
[13,] "[,, \"no database\", null ]"
[14,] "null"
[15,] "Unknown"
[16,] "null"
[17,] "[PRIDE, PRIDE:0000330, Arbitrary quantification unit, ]"
[18,] "[PRIDE, PRIDE:0000330, Arbitrary quantification unit, ]"
[19,] "[MS, MS:1002896, compound identification confidence level, ]" This represents some minimal information. The data of the MTD section is formatted as a character 2-column matrix. We could now either change the value (i.e., the elements in the second column of this matrix) of existing fields, or also manually add additional fields/information. As an example we add a title and description for the experiment. See also the mzTab-M format definition for other supported fields.
To help with formatting we can also use the mtd_fields() function. Below we use this function to add information about the MS instrumentation to the MTD section:
instr <- mtd_fields(
name = "[MS, MS:1000449, LTQ Orbitrap,]",
source = "[MS, MS:1000073, ESI,]",
`analyzer[1]` = "[MS, MS:1000291, linear ion trap,]",
detector = "[MS, MS:1000253, electron multiplier,]",
field_prefix = "instrument"
)
instr [,1] [,2]
[1,] "instrument[1]-name" "[MS, MS:1000449, LTQ Orbitrap,]"
[2,] "instrument[1]-source" "[MS, MS:1000073, ESI,]"
[3,] "instrument[1]-analyzer[1]" "[MS, MS:1000291, linear ion trap,]"
[4,] "instrument[1]-detector" "[MS, MS:1000253, electron multiplier,]"And we add that information to the mtd variable.
mtd <- rbind(mtd, instr)Note that the general information part should also contain the references to all controlled vocabulary (CV) ontologies used in the mzTab-M file. The default ontologies added by the mtb_skeleton() function are the PSI-MS and the PRIDE ontologies. If other vocabularies are used, they should be added manually (following the scheme of the others, i.e., the fields starting with "cv[").
The next category of metadata information is sample information. This comprises (optional) information on individual samples that were measured with the various assays/runs. We use the mtd_sample() function to assist in compiling this information. Parameters sample, species, tissue and cell_type, disease and description allow to provide pre-defined sample properties. Additional sample annotations and details can be provided through the function’s .... For the example below we define some of these properties and in addition provide a custom field for the extraction data. Be aware that mtd_sample() does not support partial or positional matching of parameters; for each of the parameters the full parameter name has to be used (i.e., sample = ... instead of sam = ... or s = ...).
mtd_s <- mtd_sample(
sample = unique(exp$sample_id),
species = "[NCBITaxon, NCBITaxon:9606, Homo sapiens, ]",
tissue = "[BTO, BTO:0000759, liver, ]",
cell_type = "[CL, CL:0000182, hepatocyte, ]",
c("[,,Extraction date, 2011-12-21]",
"[,,Extraction date, 2011-12-22]",
"[,,Extraction date, 2011-12-23]")
)1
mtd_s
[1,] "sample[1]" "S1"
[2,] "sample[1]-species[1]" "[NCBITaxon, NCBITaxon:9606, Homo sapiens, ]"
[3,] "sample[1]-tissue[1]" "[BTO, BTO:0000759, liver, ]"
[4,] "sample[1]-cell_type[1]" "[CL, CL:0000182, hepatocyte, ]"
[5,] "sample[1]-custom[1]" "[,,Extraction date, 2011-12-21]"
[6,] "sample[2]" "S2"
[7,] "sample[2]-species[1]" "[NCBITaxon, NCBITaxon:9606, Homo sapiens, ]"
[8,] "sample[2]-tissue[1]" "[BTO, BTO:0000759, liver, ]"
[9,] "sample[2]-cell_type[1]" "[CL, CL:0000182, hepatocyte, ]"
[10,] "sample[2]-custom[1]" "[,,Extraction date, 2011-12-22]"
[11,] "sample[3]" "S3"
[12,] "sample[3]-species[1]" "[NCBITaxon, NCBITaxon:9606, Homo sapiens, ]"
[13,] "sample[3]-tissue[1]" "[BTO, BTO:0000759, liver, ]"
[14,] "sample[3]-cell_type[1]" "[CL, CL:0000182, hepatocyte, ]"
[15,] "sample[3]-custom[1]" "[,,Extraction date, 2011-12-23]" We can then add this information to the mtd variable by simply rbind()ing it.
mtd <- rbind(mtd, mtd_s)Next we compile MS run information of the experiment using the mtd_ms_run() helper function. This should comprise all (MS-specific) information related to the measurement of each sample - including also the MS data file names and locations. For our example we use the file names reported in the sample data frame and specify the polarity of the measurement runs.
mtd_msr <- mtd_ms_run(
location = exp$file_name,
format = "[MS, MS:1000584, mzML file, ]",
id_format = "[MS, MS:1000530, mzML unique identifier, ]",
scan_polarity = "positive")
mtd_msr values
[1,] "ms_run[1]-location" "s1-t1.mzML"
[2,] "ms_run[1]-format" "[MS, MS:1000584, mzML file, ]"
[3,] "ms_run[1]-id_format" "[MS, MS:1000530, mzML unique identifier, ]"
[4,] "ms_run[1]-scan_polarity[1]" "[MS, MS:1000130, positive scan, ]"
[5,] "ms_run[2]-location" "s1-t2.mzML"
[6,] "ms_run[2]-format" "[MS, MS:1000584, mzML file, ]"
[7,] "ms_run[2]-id_format" "[MS, MS:1000530, mzML unique identifier, ]"
[8,] "ms_run[2]-scan_polarity[1]" "[MS, MS:1000130, positive scan, ]"
[9,] "ms_run[3]-location" "s2-t1.mzML"
[10,] "ms_run[3]-format" "[MS, MS:1000584, mzML file, ]"
[11,] "ms_run[3]-id_format" "[MS, MS:1000530, mzML unique identifier, ]"
[12,] "ms_run[3]-scan_polarity[1]" "[MS, MS:1000130, positive scan, ]"
[13,] "ms_run[4]-location" "s2-t2.mzML"
[14,] "ms_run[4]-format" "[MS, MS:1000584, mzML file, ]"
[15,] "ms_run[4]-id_format" "[MS, MS:1000530, mzML unique identifier, ]"
[16,] "ms_run[4]-scan_polarity[1]" "[MS, MS:1000130, positive scan, ]"
[17,] "ms_run[5]-location" "s3-t1.mzML"
[18,] "ms_run[5]-format" "[MS, MS:1000584, mzML file, ]"
[19,] "ms_run[5]-id_format" "[MS, MS:1000530, mzML unique identifier, ]"
[20,] "ms_run[5]-scan_polarity[1]" "[MS, MS:1000130, positive scan, ]"
[21,] "ms_run[6]-location" "s3-t2.mzML"
[22,] "ms_run[6]-format" "[MS, MS:1000584, mzML file, ]"
[23,] "ms_run[6]-id_format" "[MS, MS:1000530, mzML unique identifier, ]"
[24,] "ms_run[6]-scan_polarity[1]" "[MS, MS:1000130, positive scan, ]" Each row in the exp data frame was assigned to a "ms_run" with the location and format of the respective file as well as the polarity in which the data was acquired. We can combine this data with the mtd variable.
mtd <- rbind(mtd, mtd_msr)Next we define the assay information. Generally, each measurement (MS run) is associated to one assay, but also more complex configurations are supported. See the help of the mtd_assay() function for details on multiplexed or pre-fractionated samples. Mandatory information that has to be provided to the mtd_assay() function are the name (ID) of the assay and the reference to the MS run in which the assay was measured. For the latter, a format of "ms_run[<index of the MS run>]" is expected. For our example we provide in addition also the (optional, but suggested) reference to the original sample. Note that each assay must represent one column in the following feature abundance table (SMF).
mtd_a <- mtd_assay(
assay = exp$sample_name,
sample_ref = c("sample[1]", "sample[1]", "sample[2]", "sample[2]",
"sample[3]", "sample[3]"),
ms_run_ref = paste0("ms_run[", seq_len(nrow(exp)), "]")
)0
mtd_a
[1,] "assay[1]" "S1_T1"
[2,] "assay[1]-sample_ref" "sample[1]"
[3,] "assay[1]-ms_run_ref" "ms_run[1]"
[4,] "assay[2]" "S1_T2"
[5,] "assay[2]-sample_ref" "sample[1]"
[6,] "assay[2]-ms_run_ref" "ms_run[2]"
[7,] "assay[3]" "S2_T1"
[8,] "assay[3]-sample_ref" "sample[2]"
[9,] "assay[3]-ms_run_ref" "ms_run[3]"
[10,] "assay[4]" "S2_T2"
[11,] "assay[4]-sample_ref" "sample[2]"
[12,] "assay[4]-ms_run_ref" "ms_run[4]"
[13,] "assay[5]" "S3_T1"
[14,] "assay[5]-sample_ref" "sample[3]"
[15,] "assay[5]-ms_run_ref" "ms_run[5]"
[16,] "assay[6]" "S3_T2"
[17,] "assay[6]-sample_ref" "sample[3]"
[18,] "assay[6]-ms_run_ref" "ms_run[6]"We add this information to the mtd variable.
mtd <- rbind(mtd, mtd_a)At last we compile the study variable information of our example experiment. This should capture all experiment-relevant study variables. In R, such information is generally encoded in a sample or phenotype data.frame, with rows being individual samples (or measurements thereof) and columns the sample characteristics (i.e., the study variables). For our example we use the mtd_study_variables() function to generate the mzTab-M study variable information, specifying with parameter study_variable_columns the names of the data.frame containing the relevant information.
mtd_svar <- mtd_study_variables(
exp,
study_variable_columns = c("timepoint", "genotype", "operator"))
mtd_svar [,1]
[1,] "study_variable[1]"
[2,] "study_variable[1]-assay_refs"
[3,] "study_variable[1]-average_function"
[4,] "study_variable[1]-variation_function"
[5,] "study_variable[1]-description"
[6,] "study_variable[2]"
[7,] "study_variable[2]-assay_refs"
[8,] "study_variable[2]-average_function"
[9,] "study_variable[2]-variation_function"
[10,] "study_variable[2]-description"
[11,] "study_variable[3]"
[12,] "study_variable[3]-assay_refs"
[13,] "study_variable[3]-average_function"
[14,] "study_variable[3]-variation_function"
[15,] "study_variable[3]-description"
[16,] "study_variable[4]"
[17,] "study_variable[4]-assay_refs"
[18,] "study_variable[4]-average_function"
[19,] "study_variable[4]-variation_function"
[20,] "study_variable[4]-description"
[21,] "study_variable[5]"
[22,] "study_variable[5]-assay_refs"
[23,] "study_variable[5]-average_function"
[24,] "study_variable[5]-variation_function"
[25,] "study_variable[5]-description"
[26,] "study_variable[6]"
[27,] "study_variable[6]-assay_refs"
[28,] "study_variable[6]-average_function"
[29,] "study_variable[6]-variation_function"
[30,] "study_variable[6]-description"
[,2]
[1,] "timepoint:0h"
[2,] "assay[1]|assay[3]|assay[5]"
[3,] "[MS, MS:1002962, mean, ]"
[4,] "[MS, MS:1002963, variation coefficient, ]"
[5,] "Column: timepoint, value: 0h"
[6,] "timepoint:6h"
[7,] "assay[2]|assay[4]|assay[6]"
[8,] "[MS, MS:1002962, mean, ]"
[9,] "[MS, MS:1002963, variation coefficient, ]"
[10,] "Column: timepoint, value: 6h"
[11,] "genotype:WT"
[12,] "assay[1]|assay[2]"
[13,] "[MS, MS:1002962, mean, ]"
[14,] "[MS, MS:1002963, variation coefficient, ]"
[15,] "Column: genotype, value: WT"
[16,] "genotype:KO"
[17,] "assay[3]|assay[4]|assay[5]|assay[6]"
[18,] "[MS, MS:1002962, mean, ]"
[19,] "[MS, MS:1002963, variation coefficient, ]"
[20,] "Column: genotype, value: KO"
[21,] "operator:BB"
[22,] "assay[1]|assay[2]|assay[3]|assay[4]"
[23,] "[MS, MS:1002962, mean, ]"
[24,] "[MS, MS:1002963, variation coefficient, ]"
[25,] "Column: operator, value: BB"
[26,] "operator:FB"
[27,] "assay[5]|assay[6]"
[28,] "[MS, MS:1002962, mean, ]"
[29,] "[MS, MS:1002963, variation coefficient, ]"
[30,] "Column: operator, value: FB" Each unique value in each of the specified columns is encoded as a study_variable (or rather as a study variable value), with its assay_refs attribute containing the rows/assays in which this value was measured. The variable’s description (by default) indicates the name of the column. The average_function and variation_function attributes allow to define the function that was used to calculate the average and variance of the abundance values for that variable value. In upcoming versions a dedicated attribute group can be used to specify the name of the column (i.e. the study variable name) the study variable value is provided in.
We next add the study variable information to the mtdvariable.
mtd <- rbind(mtd, mtd_svar)At last we sort the elements according to the expected order in the MTD section using the mtd_sort() function.
mtd <- mtd_sort(mtd)This two-column matrix could now be saved to a text file using a tabulator ("\t") as a field separator. The full metadata header is shown in the table below.
library(pander)
pandoc.table(mtd, style = "rmarkdown", split.table = Inf)| mzTab-version | 2.0.0-M |
| mzTab-ID | id |
| title | Experiment 1 preprocessed data |
| description | The preprocessed data of the experiment 1. |
| instrument[1]-name | [MS, MS:1000449, LTQ Orbitrap,] |
| instrument[1]-source | [MS, MS:1000073, ESI,] |
| instrument[1]-analyzer[1] | [MS, MS:1000291, linear ion trap,] |
| instrument[1]-detector | [MS, MS:1000253, electron multiplier,] |
| software[1] | [MS, MS:1001582, xcms, 4.1.0] |
| quantification_method | [MS, MS:1001834, LC-MS label-free quantitation analysis, ] |
| sample[1] | S1 |
| sample[1]-species[1] | [NCBITaxon, NCBITaxon:9606, Homo sapiens, ] |
| sample[1]-tissue[1] | [BTO, BTO:0000759, liver, ] |
| sample[1]-cell_type[1] | [CL, CL:0000182, hepatocyte, ] |
| sample[1]-custom[1] | [,,Extraction date, 2011-12-21] |
| sample[2] | S2 |
| sample[2]-species[1] | [NCBITaxon, NCBITaxon:9606, Homo sapiens, ] |
| sample[2]-tissue[1] | [BTO, BTO:0000759, liver, ] |
| sample[2]-cell_type[1] | [CL, CL:0000182, hepatocyte, ] |
| sample[2]-custom[1] | [,,Extraction date, 2011-12-22] |
| sample[3] | S3 |
| sample[3]-species[1] | [NCBITaxon, NCBITaxon:9606, Homo sapiens, ] |
| sample[3]-tissue[1] | [BTO, BTO:0000759, liver, ] |
| sample[3]-cell_type[1] | [CL, CL:0000182, hepatocyte, ] |
| sample[3]-custom[1] | [,,Extraction date, 2011-12-23] |
| ms_run[1]-location | s1-t1.mzML |
| ms_run[1]-format | [MS, MS:1000584, mzML file, ] |
| ms_run[1]-id_format | [MS, MS:1000530, mzML unique identifier, ] |
| ms_run[1]-scan_polarity[1] | [MS, MS:1000130, positive scan, ] |
| ms_run[2]-location | s1-t2.mzML |
| ms_run[2]-format | [MS, MS:1000584, mzML file, ] |
| ms_run[2]-id_format | [MS, MS:1000530, mzML unique identifier, ] |
| ms_run[2]-scan_polarity[1] | [MS, MS:1000130, positive scan, ] |
| ms_run[3]-location | s2-t1.mzML |
| ms_run[3]-format | [MS, MS:1000584, mzML file, ] |
| ms_run[3]-id_format | [MS, MS:1000530, mzML unique identifier, ] |
| ms_run[3]-scan_polarity[1] | [MS, MS:1000130, positive scan, ] |
| ms_run[4]-location | s2-t2.mzML |
| ms_run[4]-format | [MS, MS:1000584, mzML file, ] |
| ms_run[4]-id_format | [MS, MS:1000530, mzML unique identifier, ] |
| ms_run[4]-scan_polarity[1] | [MS, MS:1000130, positive scan, ] |
| ms_run[5]-location | s3-t1.mzML |
| ms_run[5]-format | [MS, MS:1000584, mzML file, ] |
| ms_run[5]-id_format | [MS, MS:1000530, mzML unique identifier, ] |
| ms_run[5]-scan_polarity[1] | [MS, MS:1000130, positive scan, ] |
| ms_run[6]-location | s3-t2.mzML |
| ms_run[6]-format | [MS, MS:1000584, mzML file, ] |
| ms_run[6]-id_format | [MS, MS:1000530, mzML unique identifier, ] |
| ms_run[6]-scan_polarity[1] | [MS, MS:1000130, positive scan, ] |
| assay[1] | S1_T1 |
| assay[1]-sample_ref | sample[1] |
| assay[1]-ms_run_ref | ms_run[1] |
| assay[2] | S1_T2 |
| assay[2]-sample_ref | sample[1] |
| assay[2]-ms_run_ref | ms_run[2] |
| assay[3] | S2_T1 |
| assay[3]-sample_ref | sample[2] |
| assay[3]-ms_run_ref | ms_run[3] |
| assay[4] | S2_T2 |
| assay[4]-sample_ref | sample[2] |
| assay[4]-ms_run_ref | ms_run[4] |
| assay[5] | S3_T1 |
| assay[5]-sample_ref | sample[3] |
| assay[5]-ms_run_ref | ms_run[5] |
| assay[6] | S3_T2 |
| assay[6]-sample_ref | sample[3] |
| assay[6]-ms_run_ref | ms_run[6] |
| study_variable[1] | timepoint:0h |
| study_variable[1]-assay_refs | assay[1]|assay[3]|assay[5] |
| study_variable[1]-average_function | [MS, MS:1002962, mean, ] |
| study_variable[1]-variation_function | [MS, MS:1002963, variation coefficient, ] |
| study_variable[1]-description | Column: timepoint, value: 0h |
| study_variable[2] | timepoint:6h |
| study_variable[2]-assay_refs | assay[2]|assay[4]|assay[6] |
| study_variable[2]-average_function | [MS, MS:1002962, mean, ] |
| study_variable[2]-variation_function | [MS, MS:1002963, variation coefficient, ] |
| study_variable[2]-description | Column: timepoint, value: 6h |
| study_variable[3] | genotype:WT |
| study_variable[3]-assay_refs | assay[1]|assay[2] |
| study_variable[3]-average_function | [MS, MS:1002962, mean, ] |
| study_variable[3]-variation_function | [MS, MS:1002963, variation coefficient, ] |
| study_variable[3]-description | Column: genotype, value: WT |
| study_variable[4] | genotype:KO |
| study_variable[4]-assay_refs | assay[3]|assay[4]|assay[5]|assay[6] |
| study_variable[4]-average_function | [MS, MS:1002962, mean, ] |
| study_variable[4]-variation_function | [MS, MS:1002963, variation coefficient, ] |
| study_variable[4]-description | Column: genotype, value: KO |
| study_variable[5] | operator:BB |
| study_variable[5]-assay_refs | assay[1]|assay[2]|assay[3]|assay[4] |
| study_variable[5]-average_function | [MS, MS:1002962, mean, ] |
| study_variable[5]-variation_function | [MS, MS:1002963, variation coefficient, ] |
| study_variable[5]-description | Column: operator, value: BB |
| study_variable[6] | operator:FB |
| study_variable[6]-assay_refs | assay[5]|assay[6] |
| study_variable[6]-average_function | [MS, MS:1002962, mean, ] |
| study_variable[6]-variation_function | [MS, MS:1002963, variation coefficient, ] |
| study_variable[6]-description | Column: operator, value: FB |
| cv[1]-label | MS |
| cv[1]-full_name | PSI-MS controlled vocabulary |
| cv[1]-version | 4.1.138 |
| cv[1]-uri | https://raw.githubusercontent.com/HUPO-PSI/psi-ms-CV/master/psi-ms.obo |
| cv[2]-label | PRIDE |
| cv[2]-full_name | PRIDE PRoteomics IDEntifications (PRIDE) database controlled vocabulary |
| cv[2]-version | 16:10:2023 11:38 |
| cv[2]-uri | https://www.ebi.ac.uk/ols/ontologies/pride |
| database[1] | [,, “no database”, null ] |
| database[1]-prefix | null |
| database[1]-version | Unknown |
| database[1]-uri | null |
| small_molecule-quantification_unit | [PRIDE, PRIDE:0000330, Arbitrary quantification unit, ] |
| small_molecule_feature-quantification_unit | [PRIDE, PRIDE:0000330, Arbitrary quantification unit, ] |
| small_molecule-identification_reliability | [MS, MS:1002896, compound identification confidence level, ] |
Small Molecule Feature (SMF) Table
The small molecule feature (SMF) section captures information on the quantified entities (features) of an experiment. This includes the feature abundances across assays as well as the feature’s m/z, retention times and eventual additional annotations such as the ion or the exact mass. The smf_create() function compiles and formats this section based on the provided abundance matrix and feature specifications.
Below we create an example abundance matrix and feature characteristics data matching the metadata from the previous section. Generally, such information can be extracted from the result objects of preprocessing software. We first define the abundance matrix: columns are assays, rows features. Importantly, the number and order of the assays has to match the assay definition in the metadata (defined above with the mtd_assay() function). Our example data consists of quantification of 5 features in 6 measurements (assays) of 3 samples.
abundances <- cbind(c(200.1, 1232.1, 54.3, 399.1, 599.8),
c(260.2, 39.5, 177.4, 599.5, 5344.1),
c(256.1, 904.2, 56.9, 533.1, 489.9),
c(232.1, 43.3, 201.4, 434.2, 5154.1),
c(264.2, 1102.4, 43.5, 514.5, 583.1),
c(246.2, 52.1, 187.2, 508.3, 601.5))
colnames(abundances) <- exp$sample_name
rownames(abundances) <- c("FT01", "FT02", "FT03", "FT04", "FT05")We next define also a data.frame with the feature characteristics (one row per feature and columns with m/z, retention time and, where known, also the adduct information and charge).
feature_info <- data.frame(
mzmed = c(324.3, 127.1, 299.2, 523.1, 312.4),
rtmed = c(25.6, 128.4, 67.2, 219.3, 221.4),
rtmin = c(23.1, 125.1, 65.1, 216.3, 218.3),
rtmax = c(26.9, 130.3, 69.1, 223.2, 224.8),
adduct = c(NA, "[M+H]+", NA, "[M+Na]+", NA),
charge = c(NA, 1L, NA, 1L, NA)
)
rownames(feature_info) <- rownames(abundances)We can now feed this information to the smf_create() function. In addition to the predefined, parameters, also additional feature annotations/columns can be passed to the function through it’s ... parameter. We provide the IDs of the individual features with feature_id =. These are then stored into a column "opt_feature_id". Note that all parameters must be fully named, i.e., x = or charge = since the function does not support positional matching of its arguments.
smf <- smf_create(
x = abundances,
exp_mass_to_charge = feature_info$mzmed,
retention_time_in_seconds = feature_info$rtmed,
retention_time_in_seconds_start = feature_info$rtmin,
retention_time_in_seconds_end = feature_info$rtmax,
charge = feature_info$charge,
adduct_ion = feature_info$adduct,
feature_id = rownames(feature_info))The SMF content is:
smf SFH SMF_ID SME_ID_REFS SME_ID_REF_ambiguity_code adduct_ion isotopomer
FT01 SMF 1 null null null null
FT02 SMF 2 null null [M+H]+ null
FT03 SMF 3 null null null null
FT04 SMF 4 null null [M+Na]+ null
FT05 SMF 5 null null null null
exp_mass_to_charge charge retention_time_in_seconds
FT01 324.3 null 25.6
FT02 127.1 1 128.4
FT03 299.2 null 67.2
FT04 523.1 1 219.3
FT05 312.4 null 221.4
retention_time_in_seconds_start retention_time_in_seconds_end
FT01 23.1 26.9
FT02 125.1 130.3
FT03 65.1 69.1
FT04 216.3 223.2
FT05 218.3 224.8
abundance_assay[1] abundance_assay[2] abundance_assay[3]
FT01 200.1 260.2 256.1
FT02 1232.1 39.5 904.2
FT03 54.3 177.4 56.9
FT04 399.1 599.5 533.1
FT05 599.8 5344.1 489.9
abundance_assay[4] abundance_assay[5] abundance_assay[6] opt_feature_id
FT01 232.1 264.2 246.2 FT01
FT02 43.3 1102.4 52.1 FT02
FT03 201.4 43.5 187.2 FT03
FT04 434.2 514.5 508.3 FT04
FT05 5154.1 583.1 601.5 FT05Small Molecule (SML) Table
Reading and importing
TODO: implement these functions moving the respective code from the legacy repo
General utility functions
General utility functions include:
-
mtd_fields(): to format values in the mzTab-M-specific format. -
mtd_sort(): to sort rows of the metadatamatrixinto the expected order. -
parse_cv_parameter(): extract elements and values from a CV parameter.
Session information
R Under development (unstable) (2026-03-22 r89674)
Platform: x86_64-pc-linux-gnu
Running under: Ubuntu 24.04.4 LTS
Matrix products: default
BLAS: /usr/lib/x86_64-linux-gnu/openblas-pthread/libblas.so.3
LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/libopenblasp-r0.3.26.so; LAPACK version 3.12.0
locale:
[1] LC_CTYPE=en_US.UTF-8 LC_NUMERIC=C
[3] LC_TIME=en_US.UTF-8 LC_COLLATE=en_US.UTF-8
[5] LC_MONETARY=en_US.UTF-8 LC_MESSAGES=en_US.UTF-8
[7] LC_PAPER=en_US.UTF-8 LC_NAME=C
[9] LC_ADDRESS=C LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C
time zone: UTC
tzcode source: system (glibc)
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] pander_0.6.6 RmzTabM_0.97.3
loaded via a namespace (and not attached):
[1] compiler_4.6.0 fastmap_1.2.0 cli_3.6.5 tools_4.6.0
[5] htmltools_0.5.9 otel_0.2.0 yaml_2.3.12 Rcpp_1.1.1
[9] rmarkdown_2.30 knitr_1.51 jsonlite_2.0.0 xfun_0.57
[13] digest_0.6.39 rlang_1.1.7 evaluate_1.0.5
