Large Scale Data Preprocessing with xcms
Johannes Rainer
Source:vignettes/large-scale-analysis.Rmd
large-scale-analysis.RmdNote: this vignette is pre-computed. See the session info for information on packages used and the date the vignette was rendered. The vignette is completely reproducible and can be run and evaluated locally. The full MS data is available in the MetaboLights repository and is downloaded and cached as part of this vignette. Thus, to run the code locally about 800GB of free disk space is required.
Note: the memory-saving functionality used in this
document requires xcms version >= 3.7.1 which is currently
(April 2025) available in Bioconductor’s 3.22 developmental branch. It
can be installed from GitHub using
remotes::install_github("sneumann/xcms").
Information on computational setup: this vignette was rendered on a Framework notebook with an 13th Gen Intel(R) Core(TM) i7-1370P CPU and 64GB of main memory.
Introduction
By design, xcms supports preprocessing of large scale data even with over 10,000 samples/data files. Handling the results of such experiments is however non-trivial and can require a very large amount of main memory. Recent updates to xcms, which include full support of the MS data infrastructure provided by the Spectra package as well as a new on-disk storage mode for preprocessing results, further reduce xcms’ memory demand and hence enable memory-saving large scale data processing also on regular computer setups. In this document a large public metabolomics data set with about 4,000 data files is analyzed and xcms’ memory usage and performance tracked. Performance and memory usage for different configurations are compared on a smaller data subset. Finally, details on the internal data and memory handling of xcms are presented and properties of different configurations for efficient (and parallel) processing of large scale data are discussed.
Data import
The data analyzed in this document was originally described in this paper. The full data is available in the MetaboLights repository with the accession ID MTBLS93. Detailed description on the study cohort, LC-MS setup and the data acquisition are provided in the original article’s supplement. In brief, samples were analyzed in Waters MSe mode, i.e., following an MS1 scan, an all-ion fragmentation was performed and recorded as a MS2 scan. MS1 and MS2 data are for each samples are stored in two separate MS data files in CDF format. MS1 data in files ending wiht 01.CDF and the respective MS2 scans in a file with same name, but ending in 02.CDF. For the present analysis we focus on MS1 data only and thus restrict the import to the MS1-only data files. The MsIO R package and Bioconductor’s MsBackendMetaboLights packages are used to retrieve and cache the MS data directly from the MetaboLights repository.
#' Load required libraries
library(MsBackendMetaboLights)
library(MsExperiment)
library(MsIO)
library(xcms)
library(peakRAM) # Track memory usage and processing time
library(pander) # To render tables
#' Retrieve the MS1 data from the MetaboLights data set
mlp <- MetaboLightsParam(mtblsId = "MTBLS93", filePattern = "01.CDF$")
twins <- readMsObject(MsExperiment(), mlp, keepOntology = FALSE,
keepProtocol = FALSE, simplify = FALSE)
twins
#> Object of class MsExperiment
#> Spectra: MS1 (12082605)
#> Experiment data: 4063 sample(s)
#> Sample data links:
#> - spectra: 4063 sample(s) to 12082605 element(s).The data set includes in total 12082605 MS spectra for 4063 samples.
The size of the data object in memory:
print(object.size(twins), units = "GB")
#> 2.7 GbNote that this data object contains only the MS metadata (i.e., retention times, MS levels etc), but no MS peaks data (i.e., m/z and intensity values). With the default data representation of the Spectra package, MS peaks data are only loaded upon demand from the original data files.
Overview of sample and experiment metadata
Various experimental and sample metadata are available for the data
set in the imported object’s sampleData(). These are
directly imported from the respective data files in
MetaboLights. The format of the imported variable names is
however not ideal for R-based data processing and we thus rename the
most relevant ones below.
#' Select variable names with eventually interesting information
scol <- c("Factor Value[Gender]", "Factor Value[Age]",
"Factor Value[Cluster effect]", "Factor Value[RMSD]",
"Factor Value[Injection number]", "Factor Value[Spectrum type]",
"Factor Value[Analysis date]", "Sample Name")
#' Define R-save names for these
names(scol) <- c("sex", "age", "cluster_effect", "rmsd", "injection_number",
"spectrum_type", "analysis_date", "sample_name")
#' Rename the variables
colnames(sampleData(twins))[match(scol, colnames(sampleData(twins)))] <-
names(scol)
table(sampleData(twins)$sex)
#>
#> Female Male
#> 1747 2316Parallel processing setup
Many functions from xcms, in particular the ones requiring heavy calculations, support parallel processing. Processing functions will split the data among these processes and perform the calculations in parallel. While parallel processing can reduce the processing time, it is important to note that it also requires all data that is being processed to be in memory. There should thus always be a balance between the number of parallel processes and the available/required memory needed. See also section Performance evaluation below for more information. In our example we use 8 CPUs in parallel.
#' Default parallel processing setup.
register(MulticoreParam(8L))Every function from xcms supporting parallel processing will now use this default parallel processing setup.
Initial data evaluation
Before preprocessing, we inspect the available LC-MS data and create a base peak chromatogram (BPC). To reduce the processing time, we create this BPC on 200 randomly selected samples.
#' Select 200 randomly selected samples
set.seed(123)
twins_rand <- twins[sample(seq_along(twins), 200)]We next create the BPC. With parameter chunkSize = 8L we
specify to load and process the MS peaks data of 8 MS data files at a
time. The peakRAM() function is used to track memory usage
and processing time. While the function will process the data of 8 files
at a time in parallel, there is no large performance gain for that,
because the processing consists of simply returning the maximum
intensity per spectrum.
#' Create the BPC for the data subset
p <- peakRAM(
bpc <- chromatogram(twins_rand, aggregationFun = "max", chunkSize = 8)
)The time and maximal (peak) memory used are:
tmp <- data.frame(
`Peak RAM [MiB]` = p$Peak_RAM_Used_MiB,
`Processing time [min]` = p$Elapsed_Time_sec / 60,
check.names = FALSE)
pandoc.table(
tmp, style = "rmarkdown", split.table = Inf,
caption = paste0("Peak RAM memory usage and processing time for ",
"BPC extraction from 200 random samples."))| Peak RAM [MiB] | Processing time [min] |
|---|---|
| 4848 | 4.877 |

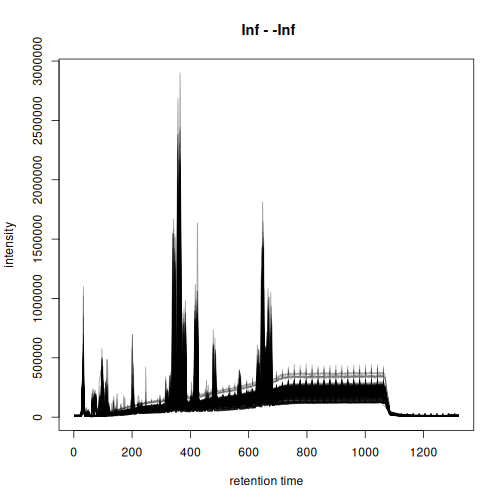

The BPC of these 200 random samples is shown below.
plot(bpc, col = "#00000060")
Based on the BPC above, we filter the data set to spectra measured between 20 and 900 seconds. Such restriction of the data set also avoids to perform the chromatographic peak detection in the part of the LC where no compounds are expected to elute. We strongly recommend such filtering before starting preprocessing to reduce running time.
twins <- filterSpectra(twins, filterRt, rt = c(20, 900))We next inspect the signal for selected lipids that have been annotated in the original article (described in Figure S2 of the original paper). The retention times and m/z values for these compounds were taken from the original publication.
#' Define m/z and retention times for annotated lipids
kc <- data.frame(
name = c("LysoPC_18:1", "LysoPC_18:2", "MG_18:2"),
mz = c(522.356, 520.341, 337.269),
rt = c(382.20, 347.28, 384.00)
)
rownames(kc) <- kc$name
kc$rtmin <- kc$rt - 20
kc$rtmax <- kc$rt + 20
kc$mzmin <- kc$mz - 0.01
kc$mzmax <- kc$mz + 0.01
pandoc.table(
kc, split.table = Inf, style = "rmarkdown",
caption = "Selected lipids that were annotated in the original article.")| name | mz | rt | rtmin | rtmax | mzmin | mzmax | |
|---|---|---|---|---|---|---|---|
| LysoPC_18:1 | LysoPC_18:1 | 522.4 | 382.2 | 362.2 | 402.2 | 522.3 | 522.4 |
| LysoPC_18:2 | LysoPC_18:2 | 520.3 | 347.3 | 327.3 | 367.3 | 520.3 | 520.4 |
| MG_18:2 | MG_18:2 | 337.3 | 384 | 364 | 404 | 337.3 | 337.3 |

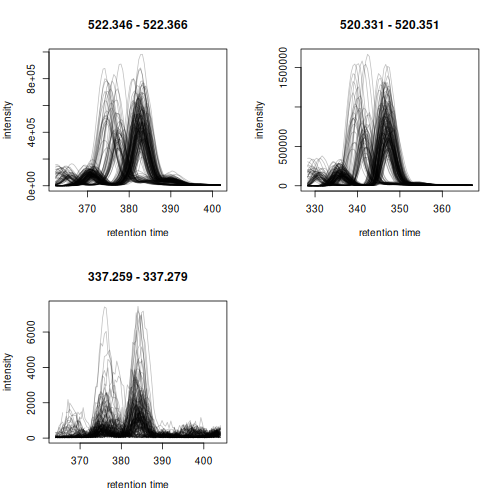

We extract and plot the ion chromatograms (EIC) for these 3 compounds from the 200 randomly selected samples.
#' Extract the ion chromatogram for the 3 compounds
eics <- chromatogram(twins_rand, mz = cbind(kc$mzmin, kc$mzmax),
rt = cbind(kc$rtmin, kc$rtmax), chunkSize = 8)
#' Plot the EICs
plot(eics, col = "#00000040")
Apparent retention time shifts are visible for all 3 compounds. We can next evaluate chromatographic peak detection settings on these example signals.
param <- CentWaveParam(ppm = 25,
peakwidth = c(2, 20),
snthresh = 0,
mzCenterFun = "wMean",
integrate = 2)
met_test <- findChromPeaks(eics, param = param)
chromPeaks(met_test[1]) |> head()
#> mz mzmin mzmax rt rtmin rtmax into intb
#> mzmin 522.356 522.346 522.366 383.178 375.894 388.319 2329316.3 1691671.50
#> mzmin 522.356 522.346 522.366 382.749 375.894 387.890 2109446.7 1535929.04
#> mzmin 522.356 522.346 522.366 382.318 375.034 387.031 2393436.5 1751258.46
#> mzmin 522.356 522.346 522.366 370.321 363.636 375.034 434015.4 74434.92
#> mzmin 522.356 522.346 522.366 382.747 376.321 388.317 2208231.7 1624551.74
#> mzmin 522.356 522.346 522.366 382.318 374.606 387.031 2392099.1 1752668.52
#> maxo sn row column
#> mzmin 505062.25 5 1 1
#> mzmin 469037.25 5 1 2
#> mzmin 527234.00 5 1 3
#> mzmin 99709.62 0 1 3
#> mzmin 476111.50 5 1 4
#> mzmin 544067.50 5 1 5

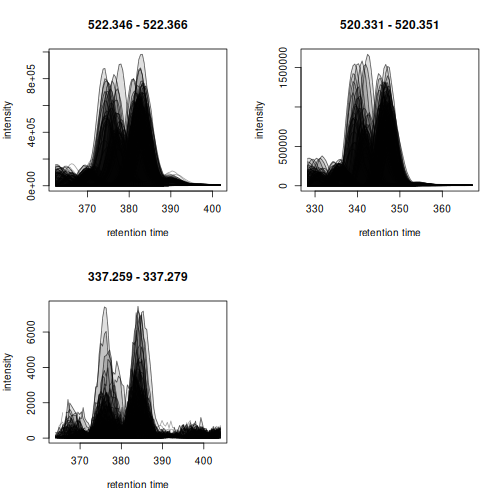

plot(met_test)
Chromatographic peaks were detected in all cases, but due to the large number of samples investigated it is not easy to evaluate the results properly. We thus create the same plot for only the first 5 samples.
plot(met_test[, 1:5])
The large peak was thus correctly identified. Also the lower
abundance peak would be detected if the snthresh would be
reduced for the peak detection in the EIC signal. Noise estimation is
difficult for peak detection in extracted ion signals, as most of the
chromatogram contains actual signal from the ion. This is different for
the preprocessing on the full data set performed in the next section as
much more real background signal is present in the full MS data
to properly estimate the noise.
Preprocessing
We next perform the preprocessing of the LC-MS data. Settings of the individual processing steps were taken from the original data analysis R script and adapted to the new xcms interface.
At first we perform the chromatographic peak detection using the
centWave method. With the parameter hdf5File we
define the name (and eventually path) for a file to keep the
preprocessing results. Information on identified chromatographic peaks
and results from later preprocessing steps will then be stored into this
file. The HDF5 file format guarantees efficient storage, and retrieval,
of these results or subsets thereof. The memory footprint of this new
result object is thus very small which is ideal for the processing of
very large data sets, also on conventional computing infrastructure
(e.g. laptop). With chunkSize = 8 we define to load and
process the MS data of 8 data files at a time. Peak detection is then
performed in parallel on 8 CPUs using our predefined default parallel
processing setup.
cwp <- CentWaveParam(ppm = 25,
peakwidth = c(2, 20),
prefilter = c(3, 500),
snthresh = 8,
mzCenterFun = "wMean",
integrate = 2)
if (file.exists("twins.h5")) invisible(file.remove("twins.h5"))
p <- peakRAM(
twins <- findChromPeaks(twins, param = cwp, chunkSize = 8,
hdf5File = "twins.h5")
)Memory usage and time elapsed for this processing step where:
tmp <- data.frame(
`Peak RAM [MiB]` = p$Peak_RAM_Used_MiB,
`Processing time [min]` = p$Elapsed_Time_sec / 60,
check.names = FALSE)
pandoc.table(
tmp, style = "rmarkdown", split.table = Inf,
caption = paste0("Peak RAM memory usage and processing time for ",
"the chromatographic peak detection step on the",
" full data."))| Peak RAM [MiB] | Processing time [min] |
|---|---|
| 8618 | 422.1 |
As a result, the findChromPeaks() function returned an
object of type XcmsExperimentHdf5, which, as described
above, stored all preprocessing results on-disk in a file in HDF5
format. The size of this result object in memory is thus not much larger
than the original object representing the MS data:
print(object.size(twins), units = "GB")
#> 1.8 GbThe identified chromatographic peaks are stored as a numeric matrix. Depending on the size of the experiment and MS data files as well as the used peak detection settings, this matrix can also be very large and use a big part of the main memory, which can significantly slow down subsequent analysis steps. Below we load this data matrix into memory to evaluate its size.
#' Load the chromatographic peak detection results and
#' get its size.
chromPeaks(twins) |>
object.size() |>
print(units = "GB")
#> 3.4 GbFor the present data set and the used settings, the size of the chromatographic peak matrix seems manageable also for regular computers. However, having this data object all the time in memory can have negative impact on processing efficiency and in the worst case have R running out of memory along the further analysis.
Below we count the number of chromatographic peaks detected per
sample and determine also their total sum. Here we take advantage of the
possibility to load only selected columns of the chromatographic peak
matrix, which will reduce the memory need for the present calculation.
Also, we use bySample = TRUE which returns the result as a
list of chromatographic peak matrices. The length of the
list is equal to the number of samples and each element is the
chromatographic peak matrix of one sample.
#' Load the "into" column from the chrom peak matrix
pc <- chromPeaks(twins, columns = "into", bySample = TRUE)
#' The distribution of the number of peaks counts
vapply(pc, nrow, integer(1)) |>
quantile()
#> 0% 25% 50% 75% 100%
#> 3344.0 4919.5 5511.0 6124.0 9167.0Between 5000 and 6000 chromatographic peaks have been detected per sample. The total number of peaks is:
Next we perform the peak refinement. This step helps to reduce common peak detection artifacts, such as duplicated peaks, overlapping peaks or artificially split peaks. Again, we process the data in chunks of 8 data files at a time to keep memory usage manageable for the used computer system.
#' Perform peak refinement
mnpp <- MergeNeighboringPeaksParam(expandRt = 5)
p <- peakRAM(
twins <- refineChromPeaks(twins, param = mnpp, chunkSize = 8)
)Memory usage and time elapsed for this processing step where:
tmp <- data.frame(
`Peak RAM [MiB]` = p$Peak_RAM_Used_MiB,
`Processing time [hours]` = p$Elapsed_Time_sec / 60 / 60,
check.names = FALSE)
pandoc.table(
tmp, style = "rmarkdown", split.table = Inf,
caption = paste0("Peak RAM memory usage and processing time for ",
"the chromatographic peak refinement."))| Peak RAM [MiB] | Processing time [hours] |
|---|---|
| 5316 | 2.926 |
For retention time alignment we will use the peak groups method, that adjusts retention time shifts between samples based on the retention times of common compounds present in most samples (the so called anchor peaks). We thus run next an initial correspondence analysis (with relaxed settings for retention time differences) in order to define these.
#' Define settings for an initial correspondence analysis:
#' require anchor peaks to be present in 70% of samples, but use a
#' larger bw to allow rt shifts
pdp <- PeakDensityParam(sampleGroups = rep(1L, length(twins)),
minFraction = 0.7,
binSize = 0.01,
ppm = 10,
bw = 3.5)
p <- peakRAM(
twins <- groupChromPeaks(twins, param = pdp)
)
tmp <- data.frame(
`Peak RAM [MiB]` = p$Peak_RAM_Used_MiB,
`Processing time [min]` = p$Elapsed_Time_sec / 60,
check.names = FALSE)
pandoc.table(
tmp, style = "rmarkdown", split.table = Inf,
caption = paste0("Peak RAM memory usage and processing time for ",
"a correspondence analysis."))| Peak RAM [MiB] | Processing time [min] |
|---|---|
| 5316 | 1.525 |
We can next perform the retention time alignment using the peak groups method.
pgp <- PeakGroupsParam(minFraction = 0.8, extraPeaks = 100,
span = 0.5)
#' Perform the alignment
p <- peakRAM(
twins <- adjustRtime(twins, param = pgp)
)
tmp <- data.frame(
`Peak RAM [MiB]` = p$Peak_RAM_Used_MiB,
`Processing time [min]` = p$Elapsed_Time_sec / 60,
check.names = FALSE)
pandoc.table(
tmp, style = "rmarkdown", split.table = Inf,
caption = paste0("Peak RAM memory usage and processing time for ",
"the retention time alignment analysis."))| Peak RAM [MiB] | Processing time [min] |
|---|---|
| 2157 | 1.66 |
We evaluate the performance of the alignment on EICs for the 3 known compounds in 200 random samples.
#' Select 200 random samples and extract ion chromatograms for the 3
#' annotated lipids. We reuse the same random seed to choose the same
#' random samples selected before. Note that we use `keepAdjustedRtime = TRUE`
#' to avoid the retention times being restored to the original values.
set.seed(123)
twins_rand <- twins[sample(seq_along(twins), 200), keepAdjustedRtime = TRUE]
#' Extract the ion chromatogram for the 3 compounds
eics <- chromatogram(twins_rand, mz = cbind(kc$mzmin, kc$mzmax),
rt = cbind(kc$rtmin, kc$rtmax), chunkSize = 8)
#' Plot the EICs
plot(eics, col = "#00000020", peakBg = NA)
The EICs are nicely aligned.
We perform now the final correspondence analysis to match aligned
chromatographic peaks across samples and define the LC-MS
features. We reduce minFraction parameter to also
define features if chromatographic peaks were only present in 30% of the
samples and use a more stringent bw parameter.
pdp <- PeakDensityParam(sampleGroups = rep(1L, length(twins)),
minFraction = 0.3,
binSize = 0.01,
ppm = 10,
bw = 1.5)
p <- peakRAM(
twins <- groupChromPeaks(twins, param = pdp)
)
tmp <- data.frame(
`Peak RAM [MiB]` = p$Peak_RAM_Used_MiB,
`Processing time [min]` = p$Elapsed_Time_sec / 60,
check.names = FALSE)
pandoc.table(
tmp, style = "rmarkdown", split.table = Inf,
caption = paste0("Peak RAM memory usage and processing time for ",
"the final correspondence analysis."))| Peak RAM [MiB] | Processing time [min] |
|---|---|
| 5242 | 2.451 |
We also evaluate whether the correspondence could correctly define features for the 3 selected lipids.
set.seed(123)
twins_rand <- twins[sample(seq_along(twins), 200),
keepAdjustedRtime = TRUE, keepFeatures = TRUE]
eics <- chromatogram(twins_rand, mz = cbind(kc$mzmin, kc$mzmax),
rt = cbind(kc$rtmin, kc$rtmax), chunkSize = 8)Correspondence was able to correctly assign the chromatographic peaks left of the center peaks into a separate feature.
plotChromPeakDensity(eics[1])

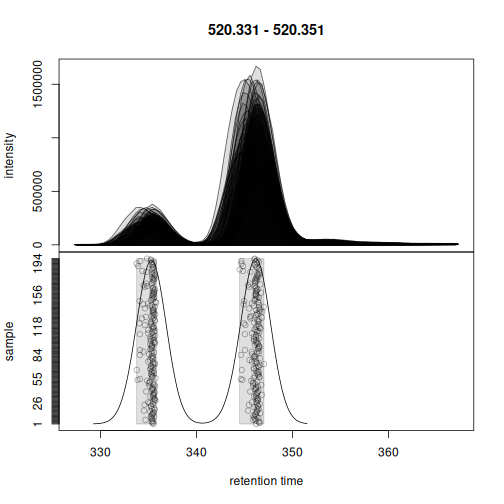

Also for the second example, the chromatographic peaks were assigned to two separate features.
plotChromPeakDensity(eics[2])

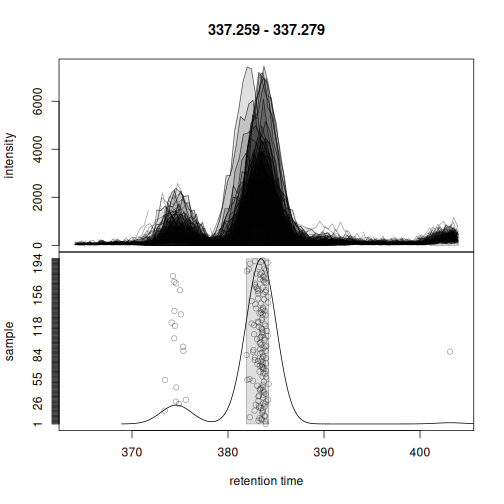

Finally, also for the last example chromatographic peaks were correctly assigned to features.
plotChromPeakDensity(eics[3])
Below we extract the feature abundances for all features in all
samples and count the total number of defined features. The
featureValues() function collects and extracts this
information from the associated HDF5 file used to store the
correspondence results.
#' Extract the feature abundances for all features in all samples
fvals <- featureValues(twins, value = "into", method = "sum")
nrow(fvals)
#> [1] 4981The total number of missing values in this data matrix is:
As a last step we therefore perform the gap-filling to rescue abundances for features for which in some samples no chromatographic peak was detected (and for which hence a missing value is reported). Here we can again benefit from chunk-wise parallel processing.
#' Perform the gap filling
cpap <- ChromPeakAreaParam()
p <- peakRAM(
twins <- fillChromPeaks(twins, param = cpap, chunkSize = 8)
)
tmp <- data.frame(
`Peak RAM [MiB]` = p$Peak_RAM_Used_MiB,
`Processing time [hours]` = p$Elapsed_Time_sec / 60 / 60,
check.names = FALSE)
pandoc.table(
tmp, style = "rmarkdown", split.table = Inf,
caption = paste0("Peak RAM memory usage and processing time for ",
"gap filling."))| Peak RAM [MiB] | Processing time [hours] |
|---|---|
| 6737 | 2.737 |
The number of missing values after gap filling:
sum(is.na(featureValues(twins, value = "into", method = "sum")))
#> [1] 61443Since all preprocessing results are stored in an HDF5 file and hence
on-disk, the size of the final results object is not larger than the
size of the initial data object representing the MS data of the
experiment. Note that this size could be further reduced (and eventually
overall performance improved) by storing the MS data in a SQL database
and representing/interfacing it with a Spectra backend from
the MsBackendSql
package (see the last section in this vignette for more
information).
print(object.size(twins), unit = "GB")
#> 1.9 GbThe results from the preprocessing could now be converted to a
SummarizedExperiment object using the
quantify() function to continue the analysis e.g. by
performing further data exploration, normalization or statistical data
analysis.
Performance evaluation
In this section we evaluate performance and memory requirements of
xcms for data preprocessing. R’s copy-on-change strategy can be
a bottleneck, in particular for very large data sets as data objects
(and hence preprocessing results) are copied temporarily during a data
analysis. We compare memory usage for the default
XcmsExperiment object as well as the new
XcmsExperimentHdf5 result object and evaluate scalability
of the preprocessing by distributing the load to separate CPUs. In
contract to the XcmsExperiment object, the
XcmsExperimentHdf5 object keeps all preprocessing results
on-disk in an HDF5 file reducing thus the memory footprint.
Below we create a subset of the data consisting of 100 randomly selected
files.
We perform chromatographic peak detection on this subset for different configurations:
- Peak detection using the default
XcmsExperimentresult object. - Peak detection using the
XcmsExperimentHdf5result object. - Peak detection using 1, 2, 4 and 8 CPUs for both result objects.
We use a chunkSize = 8 for all these setups, which will
load the MS data for 8 data files into memory. The time and memory usage
to access this data is:
library(peakRAM)
peakRAM(tmp <- peaksData(spectra(tsub[1:8])))
#> Function_Call Elapsed_Time_sec Total_RAM_Used_MiB
#> 1 tmp<-peaksData(spectra(tsub[1:8])) 5.833 1922.9
#> Peak_RAM_Used_MiB
#> 1 3864.8And the memory used of the resulting MS data:
print(object.size(tmp), units = "GB")
#> 1.9 Gb
rm(tmp)We next execute the performance tests. To use the new
XcmsExperimentHdf5, we need to specify the path and file
name of the HDF5 file where the results should be stored to.
#' Settings
cwp <- CentWaveParam(ppm = 25,
peakwidth = c(2, 20),
prefilter = c(3, 500),
snthresh = 8,
mzCenterFun = "wMean",
integrate = 2)
#' Eventually remove the result HDF5 object if present
if (file.exists("tres.h5")) invisible(file.remove("tres.h5"))
#' Perform the comparison
p <- peakRAM(
tres <- findChromPeaks(tsub, param = cwp, chunkSize = 8,
BPPARAM = SerialParam()),
findChromPeaks(tsub, param = cwp, chunkSize = 8,
BPPARAM = MulticoreParam(2)),
findChromPeaks(tsub, param = cwp, chunkSize = 8,
BPPARAM = MulticoreParam(4)),
findChromPeaks(tsub, param = cwp, chunkSize = 8,
BPPARAM = MulticoreParam(8)),
tres_h5 <- findChromPeaks(tsub, param = cwp, chunkSize = 8,
BPPARAM = SerialParam(), hdf5File = "tres.h5"),
findChromPeaks(tsub, param = cwp, chunkSize = 8,
BPPARAM = MulticoreParam(2), hdf5File = tempfile()),
findChromPeaks(tsub, param = cwp, chunkSize = 8,
BPPARAM = MulticoreParam(4), hdf5File = tempfile()),
findChromPeaks(tsub, param = cwp, chunkSize = 8,
BPPARAM = MulticoreParam(8), hdf5File = tempfile())
)peakRAM can not correctly monitor the memory usage for multi-core processing, thus we evaluate memory usage only for the serial processing setup.
tmp <- data.frame(
`Result object` = rep(c("XcmsExperiment", "XcmsExperimentHdf5"), each = 4),
`CPUs` = c(1, 2, 4, 8, 1, 2, 4, 8),
`Peak RAM [MiB]` = p$Peak_RAM_Used_MiB,
`Processing time [min]` = p$Elapsed_Time_sec / 60,
check.names = FALSE)
pandoc.table(
tmp, style = "rmarkdown", split.table = Inf,
caption = paste0("Peak RAM memory usage and processing time for ",
"chromatographic peak detection using different number ",
"of CPUs. Data was loaded and processed in chunks of ",
"8 data files."))| Result object | CPUs | Peak RAM [MiB] | Processing time [min] |
|---|---|---|---|
| XcmsExperiment | 1 | 6691 | 40.97 |
| XcmsExperiment | 2 | 6627 | 23.88 |
| XcmsExperiment | 4 | 6627 | 14.94 |
| XcmsExperiment | 8 | 6627 | 11.95 |
| XcmsExperimentHdf5 | 1 | 6627 | 41.44 |
| XcmsExperimentHdf5 | 2 | 6627 | 24.21 |
| XcmsExperimentHdf5 | 4 | 6627 | 15.3 |
| XcmsExperimentHdf5 | 8 | 6627 | 12.37 |
The memory demand is dependent on the chunkSize
parameter, i.e., the number of files (samples) from which the MS data is
loaded and processed at a time. The peak RAM usage for
chunkSize = 8 is, for the present data set, about twice as
large as the size of the respective MS data in memory. The processing
time is reduced with an increase in the number of CPUs used, but this
relationship is not linear. This is most likely due to the overhead in
data splitting and distribution to the individual calculation nodes as
well as the result collection and their merging/export.

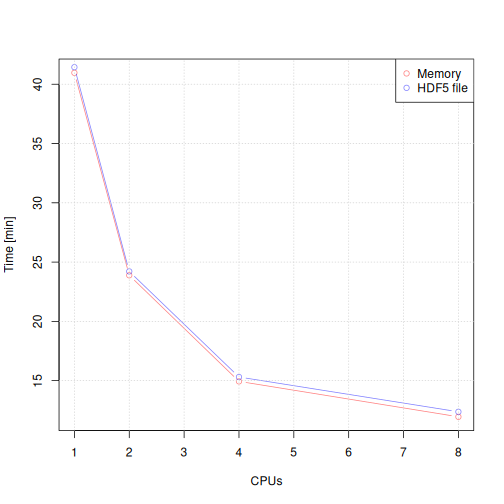

plot(tmp[1:4, "CPUs"], tmp[1:4, "Processing time [min]"],
type = "b", col = "#ff000080", xlab = "CPUs", ylab = "Time [min]")
points(tmp[5:8, "CPUs"], tmp[5:8, "Processing time [min]"],
type = "b", col = "#0000ff80")
grid()
legend("topright", col = c("#ff000080", "#0000ff80"), pch = 1,
legend = c("Memory", "HDF5 file"))
The largest performance gain is between serial processing and
parallel processing with two CPUs. Importantly, the performance of
keeping the results in memory (for the XcmsExperiment
result object) or storing them to a HDF5 file (for the
XcmsExperimentHdf5 file) is comparable.
We next evaluate the performance of the peak refinement step for the
different setups re-using the parameter object from the peak refinement
on the full data. Processing an XcmsExperimentHdf5 object
will overwrite the results in the associated HDF5 files. To perform the
peak refinement on the same initial data we thus need to create copies
of the original HDF5 file for each configuration.
#' Settings
mnpp <- MergeNeighboringPeaksParam(expandRt = 5)
#' Create copies of the original peak detection results
t1 <- tres_h5
tf <- tempfile()
file.copy(tres_h5@hdf5_file, tf)
#> [1] TRUE
t1@hdf5_file <- tf
t2 <- tres_h5
tf <- tempfile()
file.copy(tres_h5@hdf5_file, tf)
#> [1] TRUE
t2@hdf5_file <- tf
t4 <- tres_h5
tf <- tempfile()
file.copy(tres_h5@hdf5_file, tf)
#> [1] TRUE
t4@hdf5_file <- tf
t8 <- tres_h5
tf <- tempfile()
file.copy(tres_h5@hdf5_file, tf)
#> [1] TRUE
t8@hdf5_file <- tf
#' Run peak refinement with different configurations
p <- peakRAM(
tres_2 <- refineChromPeaks(tres, param = mnpp, chunkSize = 8,
BPPARAM = SerialParam()),
refineChromPeaks(tres, param = mnpp, chunkSize = 8,
BPPARAM = MulticoreParam(2)),
refineChromPeaks(tres, param = mnpp, chunkSize = 8,
BPPARAM = MulticoreParam(4)),
refineChromPeaks(tres, param = mnpp, chunkSize = 8,
BPPARAM = MulticoreParam(8)),
t1 <- refineChromPeaks(t1, param = mnpp, chunkSize = 8,
BPPARAM = SerialParam()),
t2 <- refineChromPeaks(t2, param = mnpp, chunkSize = 8,
BPPARAM = MulticoreParam(2)),
t4 <- refineChromPeaks(t4, param = mnpp, chunkSize = 8,
BPPARAM = MulticoreParam(4)),
t8 <- refineChromPeaks(t8, param = mnpp, chunkSize = 8,
BPPARAM = MulticoreParam(8))
)
tmp <- data.frame(
`Result object` = rep(c("XcmsExperiment", "XcmsExperimentHdf5"), each = 4),
`CPUs` = c(1, 2, 4, 8, 1, 2, 4, 8),
`Peak RAM [MiB]` = p$Peak_RAM_Used_MiB,
`Processing time [min]` = p$Elapsed_Time_sec / 60,
check.names = FALSE)
pandoc.table(
tmp, style = "rmarkdown", split.table = Inf,
caption = paste0("Peak RAM memory usage and processing time for ",
"chromatographic peak refinement using different number ",
"of CPUs. Data was loaded and processed in chunks of ",
"8 data files."))| Result object | CPUs | Peak RAM [MiB] | Processing time [min] |
|---|---|---|---|
| XcmsExperiment | 1 | 6627 | 6.408 |
| XcmsExperiment | 2 | 6571 | 5.147 |
| XcmsExperiment | 4 | 6570 | 4.267 |
| XcmsExperiment | 8 | 6570 | 4.226 |
| XcmsExperimentHdf5 | 1 | 6570 | 6.592 |
| XcmsExperimentHdf5 | 2 | 6566 | 5.22 |
| XcmsExperimentHdf5 | 4 | 6566 | 4.336 |
| XcmsExperimentHdf5 | 8 | 6566 | 4.65 |
The maximum memory usage is the same for all settings and is again
depending on the number of data files from which raw data is imported.
The processing time is not reduced considerably by the number of CPUs.
This however depends also on the data set and the number of candidate
peaks for merging. Processing times are also similar between the
in-memory and on-disk results of the XcmsExperiment and
XcmsExperimentHdf5 objects.
Next we evaluate the performance of a correspondence analysis with
the peak density method. This method uses only the
chromPeaks() matrix for the analysis and does thus not
support the chunkSize parameter nor does it support
parallel processing. We thus only compare the performance of in-memory
and on-disk results below.
#' Settings
pdp <- PeakDensityParam(sampleGroups = rep(1, length(tsub)),
minFraction = 0.3,
binSize = 0.01, ppm = 10,
bw = 3)
#' Evaluate performance of the correspondence analysis
p <- peakRAM(
tres_2 <- groupChromPeaks(tres_2, param = pdp),
t1 <- groupChromPeaks(t1, param = pdp)
)
tmp <- data.frame(
`Result object` = rep(c("XcmsExperiment", "XcmsExperimentHdf5")),
`CPUs` = c(1, 1),
`Peak RAM [MiB]` = p$Peak_RAM_Used_MiB,
`Processing time [sec]` = p$Elapsed_Time_sec,
check.names = FALSE)
pandoc.table(
tmp, style = "rmarkdown", split.table = Inf,
caption = paste0("Peak RAM memory usage and processing time for ",
"correspondence analysis."))| Result object | CPUs | Peak RAM [MiB] | Processing time [sec] |
|---|---|---|---|
| XcmsExperiment | 1 | 2738 | 27.19 |
| XcmsExperimentHdf5 | 1 | 2720 | 28.36 |
The performance and memory demand is similar for the two result objects.
Next we evaluate the performance of the retention time alignment step using the peak groups approach. This method relies on the peak detection and correspondence results and does not support parallel processing.
#' Settings
pgp <- PeakGroupsParam(minFraction = 0.9, extraPeaks = 1000,
span = 0.5)
#' Evaluate performance of the correspondence analysis
p <- peakRAM(
tres_2 <- adjustRtime(tres_2, param = pgp),
t1 <- adjustRtime(t1, param = pgp)
)
tmp <- data.frame(
`Result object` = rep(c("XcmsExperiment", "XcmsExperimentHdf5")),
`CPUs` = c(1, 1),
`Peak RAM [MiB]` = p$Peak_RAM_Used_MiB,
`Processing time [sec]` = p$Elapsed_Time_sec,
check.names = FALSE)
pandoc.table(
tmp, style = "rmarkdown", split.table = Inf,
caption = paste0("Peak RAM memory usage and processing time for ",
"retention time alignment analysis."))| Result object | CPUs | Peak RAM [MiB] | Processing time [sec] |
|---|---|---|---|
| XcmsExperiment | 1 | 2738 | 27.19 |
| XcmsExperimentHdf5 | 1 | 2720 | 28.36 |
Processing time is very similar for both result objects, but the
memory requirement is much lower for the XcmsExperimentHdf5
object.
Finally we evaluate the performance of the gap-filling step. This
method requires access to the full MS data and can thus again be
configured with the chunkSize parameter and different
parallel processing setups.
#' Settings
cpap <- ChromPeakAreaParam()
p <- peakRAM(
tres_2 <- fillChromPeaks(tres_2, param = cpap, chunkSize = 8,
BPPARAM = SerialParam()),
fillChromPeaks(tres_2, param = cpap, chunkSize = 8,
BPPARAM = MulticoreParam(2)),
fillChromPeaks(tres_2, param = cpap, chunkSize = 8,
BPPARAM = MulticoreParam(4)),
fillChromPeaks(tres_2, param = cpap, chunkSize = 8,
BPPARAM = MulticoreParam(8)),
t1 <- fillChromPeaks(t1, param = cpap, chunkSize = 8,
BPPARAM = SerialParam()),
t2 <- fillChromPeaks(t2, param = cpap, chunkSize = 8,
BPPARAM = MulticoreParam(2)),
t4 <- fillChromPeaks(t4, param = cpap, chunkSize = 8,
BPPARAM = MulticoreParam(4)),
t8 <- fillChromPeaks(t8, param = cpap, chunkSize = 8,
BPPARAM = MulticoreParam(8))
)
tmp <- data.frame(
`Result object` = rep(c("XcmsExperiment", "XcmsExperimentHdf5"), each = 4),
`CPUs` = c(1, 2, 4, 8, 1, 2, 4, 8),
`Peak RAM [MiB]` = p$Peak_RAM_Used_MiB,
`Processing time [min]` = p$Elapsed_Time_sec / 60,
check.names = FALSE)
pandoc.table(
tmp, style = "rmarkdown", split.table = Inf,
caption = paste0("Peak RAM memory usage and processing time for ",
"gap filling using different number ",
"of CPUs. Data was loaded and processed in chunks of ",
"8 data files."))| Result object | CPUs | Peak RAM [MiB] | Processing time [min] |
|---|---|---|---|
| XcmsExperiment | 1 | 6567 | 5.578 |
| XcmsExperiment | 2 | 6541 | 2.407 |
| XcmsExperiment | 4 | 6541 | 2.457 |
| XcmsExperiment | 8 | 6541 | 2.59 |
| XcmsExperimentHdf5 | 1 | 6541 | 5.861 |
| XcmsExperimentHdf5 | 2 | 6541 | 4.851 |
| XcmsExperimentHdf5 | 4 | 6541 | 4.227 |
| XcmsExperimentHdf5 | 8 | 6541 | 4.99 |
Details of the software structure and data flow
To reduce memory demand, most processing steps are applied to
chunks of the data at a time. Thus, only the MS data for the
currently processed chunks are realized in memory. By using the Spectra
package to represent and provide the MS data, xcms now also
benefits from dedicated Spectra data backends that
e.g. retrieve the MS data on-the-fly from the original MS data files
(MsBackendMzR) or from an SQL database (using backends from
the r Biocpkg("MsBackendSql") package). These alternative
data representations are seamlessly integrated with xcms and
increase flexibility while reducing memory demand.
The XcmsExperiment result object keeps, similar to the
older result objects from xcms, all preprocessing results in
memory, the chromatographic peak detection results
(chromPeaks() matrix) in a large numeric matrix and the
correspondence results (featureDefinitions()) in a data
frame. Accessing these data is thus fast, but, depending on the size of
the experiment, they can also be very large eventually blocking a large
part of the system’s main memory. Further, for some additional analysis
steps, these tables might need to be further processed, e.g. split by
sample, which can result in (at least temporary) additional copies of
the data in memory (which can be further complicated by R’s
copy-on-change strategy). Memory usage can thus, unexpectedly to the
user, exceed the available system memory.
The new XcmsExperimentHdf5 was designed to address this
issue by storing all preprocessing results in a HDF5 file on disk,
keeping thus a very lean memory footprint. Thus, the above described
chunk-wise processing of xcms will also only load preprocessing
results from the currently processed chunk into memory. Importing
preprocessing results from the HDF5 file comes with a little overhead,
but the functions have been optimized for import of subsets of data at a
time.
Summary and guidance
Use the parameter
chunkSizeto specify the number of samples/files that should be processed at a time. Ensure to set this value according to the system’s main memory. The MS data of samples from one chunk should not exceed the still available (!) system memory.Parallel processing helps reduce processing time, but does not scale linearly, since parallel processing involves also distribution of data to, and collection of results from, the individual processing nodes.
For the present analysis, a big part of computation time was spent on the needed on-the-fly import of the MS data from the original data files. CDF files might not be the most efficient data storage container for such on-demand data retrieval. Storing the original MS data in an SQL database (either SQLite or MariaDB/MySQL) can further improve performance. See the MsbackendSql for details. The code that could be used to store the full MS data of the current experiment into a SQLite database is shown below:
library(RSQLite)
#' Create a SQLite database
con <- dbConnect(SQLite(), "twins.sqlite")
library(MsBackendSql)
twins_db <- twins
#' Save the full MS data into this database
twins_db@spectra <- setBackend(twins_db@spectra, MsBackendSql(), dbcon = con)
dbDisconnect(con)Session information
The R code was run on:
date()
#> [1] "Fri Apr 18 10:43:40 2025"Information on the computer system:
library(benchmarkme)
get_cpu()
#> $vendor_id
#> [1] "GenuineIntel"
#>
#> $model_name
#> [1] "13th Gen Intel(R) Core(TM) i7-1370P"
#>
#> $no_of_cores
#> [1] 20
get_ram()
#> 67.1 GBInformation on the R session:
sessionInfo()
#> R version 4.5.0 (2025-04-11)
#> Platform: x86_64-pc-linux-gnu
#> Running under: Arch Linux
#>
#> Matrix products: default
#> BLAS: /home/jo/R/R-4.5.0/lib64/R/lib/libRblas.so
#> LAPACK: /usr/lib/liblapack.so.3.12.0 LAPACK version 3.12.0
#>
#> locale:
#> [1] LC_CTYPE=en_US.UTF-8 LC_NUMERIC=C
#> [3] LC_TIME=en_US.UTF-8 LC_COLLATE=en_US.UTF-8
#> [5] LC_MONETARY=en_US.UTF-8 LC_MESSAGES=en_US.UTF-8
#> [7] LC_PAPER=en_US.UTF-8 LC_NAME=C
#> [9] LC_ADDRESS=C LC_TELEPHONE=C
#> [11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C
#>
#> time zone: Europe/Rome
#> tzcode source: system (glibc)
#>
#> attached base packages:
#> [1] stats4 stats graphics grDevices utils datasets methods
#> [8] base
#>
#> other attached packages:
#> [1] benchmarkme_1.0.8 pander_0.6.6
#> [3] peakRAM_1.0.2 xcms_4.7.1
#> [5] MsIO_0.0.9 MsExperiment_1.10.0
#> [7] ProtGenerics_1.40.0 MsBackendMetaboLights_1.2.0
#> [9] Spectra_1.18.0 BiocParallel_1.42.0
#> [11] S4Vectors_0.46.0 BiocGenerics_0.54.0
#> [13] generics_0.1.3 BiocStyle_2.36.0
#>
#> loaded via a namespace (and not attached):
#> [1] DBI_1.2.3 rlang_1.1.6
#> [3] magrittr_2.0.3 clue_0.3-66
#> [5] MassSpecWavelet_1.74.0 matrixStats_1.5.0
#> [7] compiler_4.5.0 RSQLite_2.3.9
#> [9] vctrs_0.6.5 reshape2_1.4.4
#> [11] stringr_1.5.1 pkgconfig_2.0.3
#> [13] MetaboCoreUtils_1.16.0 crayon_1.5.3
#> [15] fastmap_1.2.0 dbplyr_2.5.0
#> [17] XVector_0.48.0 rmarkdown_2.29
#> [19] preprocessCore_1.70.0 UCSC.utils_1.4.0
#> [21] purrr_1.0.4 bit_4.6.0
#> [23] xfun_0.52 MultiAssayExperiment_1.34.0
#> [25] cachem_1.1.0 GenomeInfoDb_1.44.0
#> [27] jsonlite_2.0.0 progress_1.2.3
#> [29] blob_1.2.4 rhdf5filters_1.20.0
#> [31] DelayedArray_0.34.0 Rhdf5lib_1.30.0
#> [33] parallel_4.5.0 prettyunits_1.2.0
#> [35] cluster_2.1.8.1 R6_2.6.1
#> [37] stringi_1.8.7 RColorBrewer_1.1-3
#> [39] limma_3.64.0 GenomicRanges_1.60.0
#> [41] iterators_1.0.14 Rcpp_1.0.14
#> [43] SummarizedExperiment_1.38.0 knitr_1.50
#> [45] IRanges_2.42.0 BiocBaseUtils_1.10.0
#> [47] Matrix_1.7-3 igraph_2.1.4
#> [49] tidyselect_1.2.1 abind_1.4-8
#> [51] yaml_2.3.10 doParallel_1.0.17
#> [53] affy_1.86.0 codetools_0.2-20
#> [55] curl_6.2.2 lattice_0.22-7
#> [57] tibble_3.2.1 plyr_1.8.9
#> [59] withr_3.0.2 Biobase_2.68.0
#> [61] benchmarkmeData_1.0.4 evaluate_1.0.3
#> [63] BiocFileCache_2.16.0 alabaster.schemas_1.8.0
#> [65] affyio_1.78.0 pillar_1.10.2
#> [67] BiocManager_1.30.25 filelock_1.0.3
#> [69] MatrixGenerics_1.20.0 foreach_1.5.2
#> [71] MALDIquant_1.22.3 MSnbase_2.34.0
#> [73] ncdf4_1.24 ggplot2_3.5.2
#> [75] hms_1.1.3 munsell_0.5.1
#> [77] scales_1.3.0 alabaster.base_1.8.0
#> [79] glue_1.8.0 MsFeatures_1.16.0
#> [81] lazyeval_0.2.2 tools_4.5.0
#> [83] mzID_1.46.0 data.table_1.17.0
#> [85] vsn_3.76.0 QFeatures_1.18.0
#> [87] mzR_2.42.0 XML_3.99-0.18
#> [89] fs_1.6.6 rhdf5_2.52.0
#> [91] grid_4.5.0 impute_1.82.0
#> [93] tidyr_1.3.1 MsCoreUtils_1.20.0
#> [95] colorspace_2.1-1 GenomeInfoDbData_1.2.14
#> [97] PSMatch_1.12.0 cli_3.6.4
#> [99] S4Arrays_1.8.0 dplyr_1.1.4
#> [101] AnnotationFilter_1.32.0 pcaMethods_2.0.0
#> [103] gtable_0.3.6 digest_0.6.37
#> [105] SparseArray_1.8.0 memoise_2.0.1
#> [107] htmltools_0.5.8.1 lifecycle_1.0.4
#> [109] httr_1.4.7 statmod_1.5.0
#> [111] bit64_4.6.0-1 MASS_7.3-65
